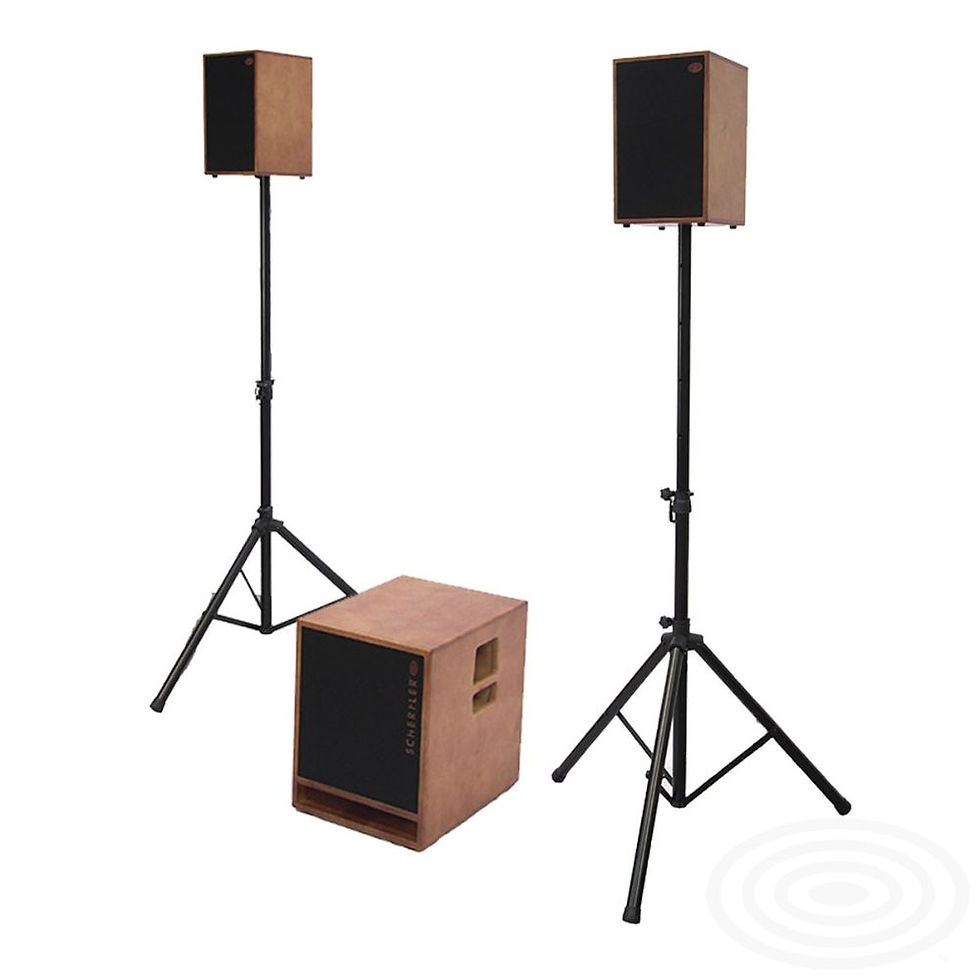

TOM is a 1000W (500+250+250) analog amplification system consisting of a compact active subwoofer and two passive satellites. The subwoofer is constructed using BJT technology, incorporating a linear power supply for excellent bass response and efficient stereo effect. Sub levels can be adjusted from -7dB to +2dB. Each satellite contains a passive crossover featuring a custom coil. TOM has been specifically developed for use in medium to large sized indoor and outdoor venues, providing powerful coverage for a range of mobile sound reinforcement application

Tom Sat
Frequency response150 Hz-  20 kHz
Sensitivity @ 1W/1m96.0  dBSPL
SPL max (calc.)123 dBSPL
CrossoverPassive - 18dB/octave
LF Transducer8" Woofer
 Ferrite magnet circuit
 Voice coil diameter 65 mm

Tom Sub
Frequency response45 Hz-  150 Hz
Sensitivity @ 1W/1m99.0  dBSPL
SPL max (calc.)126 dBSPL
CrossoverElectronic - 24dB/octave
LF Transducer12" Woofer
 Ferrite magnet circuit
 Voice coil diameter
